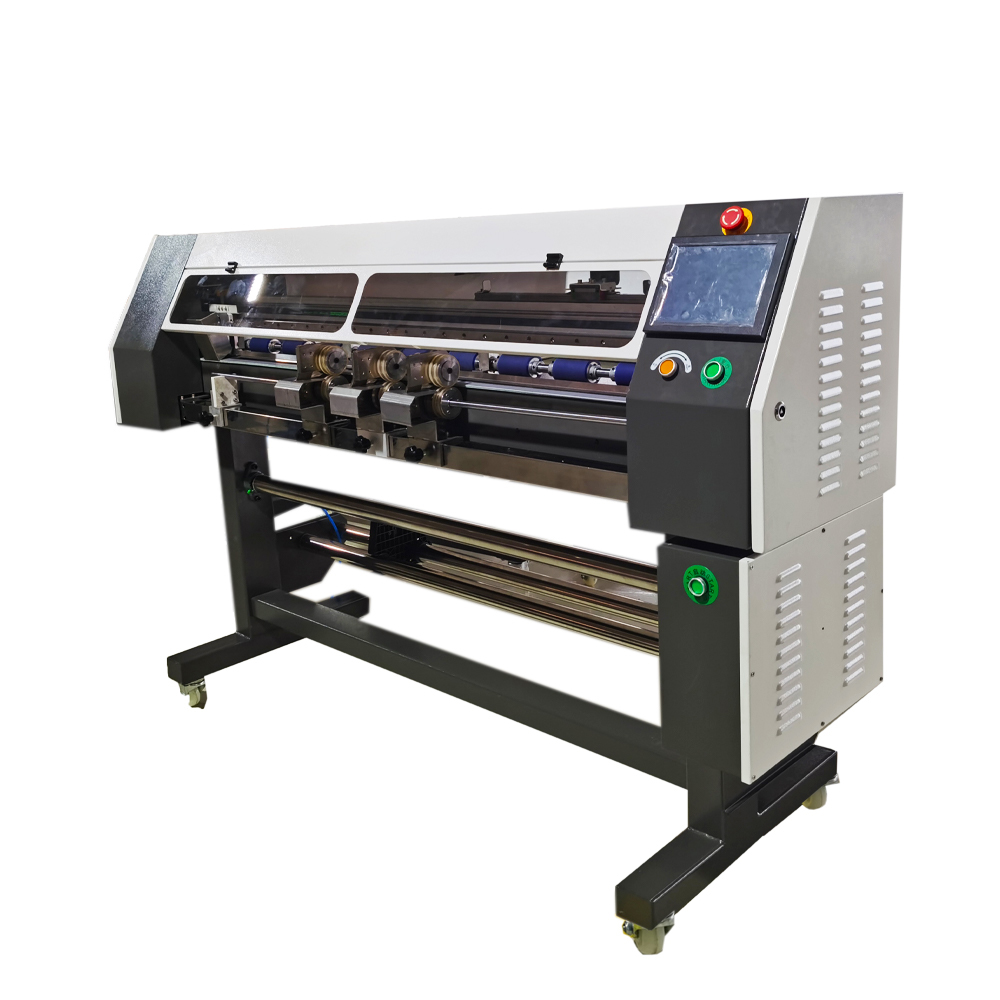

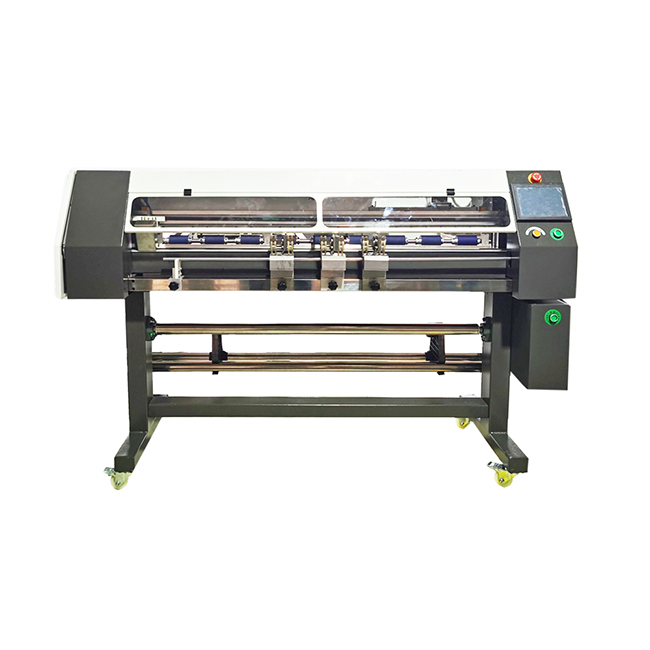

Qomolangma 54in Digitrim Automatic XY Cutter with Vertical Cutting Correction

Код товара:ACM-KS-K3-54

  • Цена : 1 273 436 руб./комплект (Срок поставки 75-90 дней)


  • Мин. заказ : 1 комплект

  • Вес брутто : 320кг

  • Количество: комплект(s) Общая стоимость : 1,273,436 руб.
  • Добавить в корзину

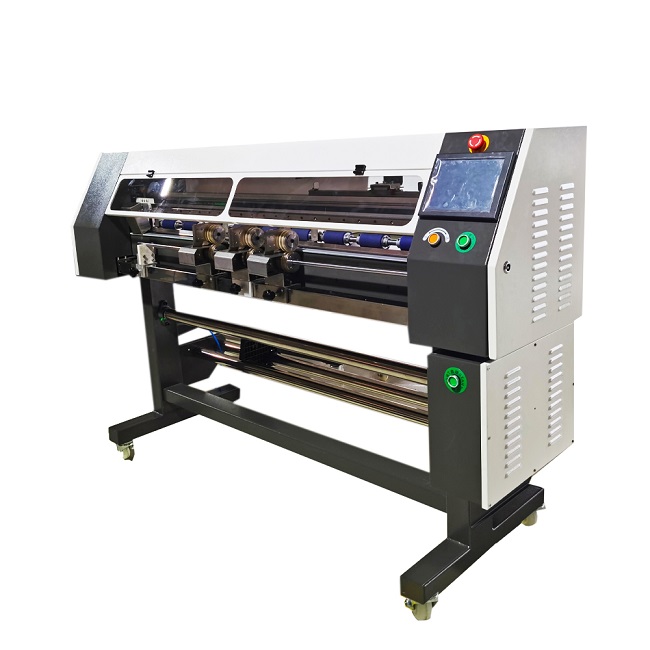

Qomolangma 54in Digitrim Automatic XY Cutter with Vertical Cutting Correction
Description

Highly precise automatic cutting machine for X and Y trimming with automatic vertical cutting correction.
The XY automatic trimmer is ideal to quickly convert print rolls into cut sheets. It is the perfect solution to trim all the flexible media output up to 1.3mt / 54in.

Main Features
* Self sharpening rotary blades
* Industrial CCD camera - Vertical automatic correction function
* Low energy consumption, smaller area occupied and high efficiency
* Combined X / Y cutting for the fastest finish of your printed and unprinted rolls
* High performing trimmer: Cut on roll of 50m (164ft.) in 3 minutes
* Printing marks can be easily down with most printing RIPs available on the market* Long term reliability and safety combined with low maintenance costs

Configuration
Max. Cutting Width 1310mm (54in)
Max. Cutting Thickness 1mm (0.039in)
Min. Cutting Size 50mm x 60mm (1.97in x 2.36in)
Max. Error ≤2mm (0.079in)
Max. Feeding Speed 1200m / H (1312yd)
Feeding Speed 1 - 18 m / min (3 - 59 ft. / min.)
Cross Cutting Time 1.2s (Horizontally Cutting - One pass)
Self-sharpening Blade Device Yes
Correct Y - correction
Blade of Y correction 3 pcs (2 single + 1 double cutter)
Most Install Cut-Y Max. 10pcs
Power 600W
Voltage 110V, 60HZ, 7A, 1 phase or 220V, 50Hz, 4A, 1 phase
Machine Size 2000mm x 650mm x 1280mm (78.7in x 25.6in x 50.4in)
Machine Weight 265kg (584.2lbs)
Packing Size 2200mm x 1000mm x 1000mm (114in x 57in x 39in)
Gross Weight 320kg (705.5lbs)
Warranty 1 Year

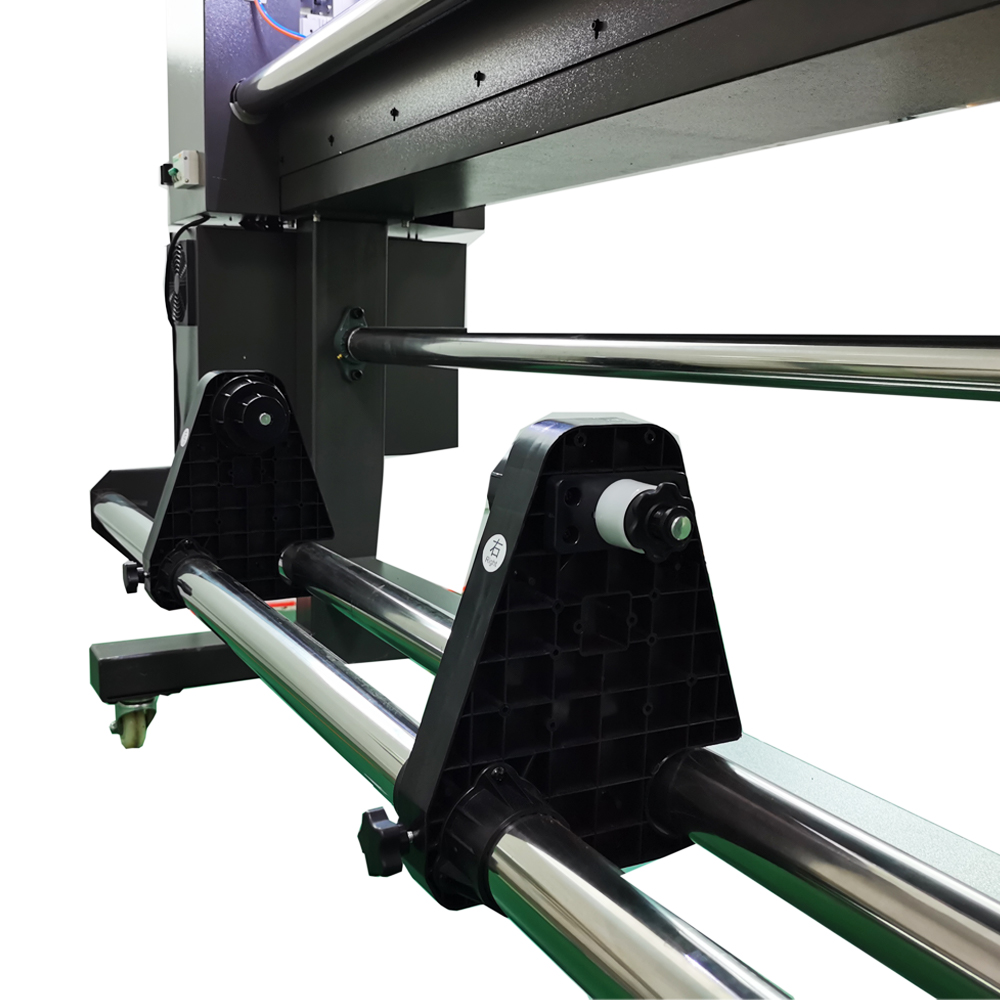

Remark: Rolls to roll cutting / automatic rewinding system is optional function, you can contact us for the price.

Suiable Materials
Paper - Also laminated or encapsulated
Wallpaper, Vinyl & self adhesive vinyl
Backlit & frontlit display
Reflective material, PVC banner
Magnetic rubber, Polycarbonate (film)
Canvas & polyester (with liner)
Many more..

Advantages

I. Own patented self sharpening rotary blades, which is made of high speed steel.
High speed steel has the characteristics of high hardness, high wear resistance and high heat resistance, which is mainly used to make complicated thin-edged cutting tools.
Self sharpening tool makes the blade always in a very sharp state, which ensures the cutting edge smooth and the finishing effect consistent. And at the same time, it avoids the tedious work of manual sharpening knife, which can improve the working efficiency.
II. Use the industrial CCD camera imported from Germany
5 million pixels, high speed high resolution
With automatic identification of cutting path and vertical automatic correction function.
This CCD camera can automatically calculate the distance between the front and rear pictures, automatically identify and cut the space between the stop printing and washing ink, and when the width of the front and rear of pictures is not consistent, it can automatically stop working to avoid the wrong cutting.
III. Low energy consumption, smaller area occupied and high efficiency.
This equipment only 750W power, energy consumption is less than a third of the special - shaped guide belt cutting machine;
The fastest cutting speed of 18 meters per minute, which is 3 times faster than the speed of the special-shaped cutting machine and 5 times faster than skilled workers.
cut one roll of 50 meters (164 ft.) in 3 minutes.
IV. Very simple to load and operate
Equipped with integrated computer adopted asus industrial motherboard, so the customer does not need to buy an additional computer.
Print must be prepared with marks readable by the trimmer.
Printing these marks can be easily done with most printing RIPs available on the market.
This cutter supports automatically load cutting marks of Rip software, and automatically generate cutting paths of Caldera and MainTop software. It can greatly reduce the work of designers to cut the path, and improve the efficiency of designers.
V. Long term reliability and safety combined with low maintenance costs.
VI. Assiduous care inspires each project.
All cutters have passed the certification of ISO’s Quality Management System and CE confirming the continuous research and propensity to optimize organizational procedures and to maintain the highest quality standards in all business processes.
All the parts are performed with 100% full inspection.
The life span of cutters are more than 5 years.

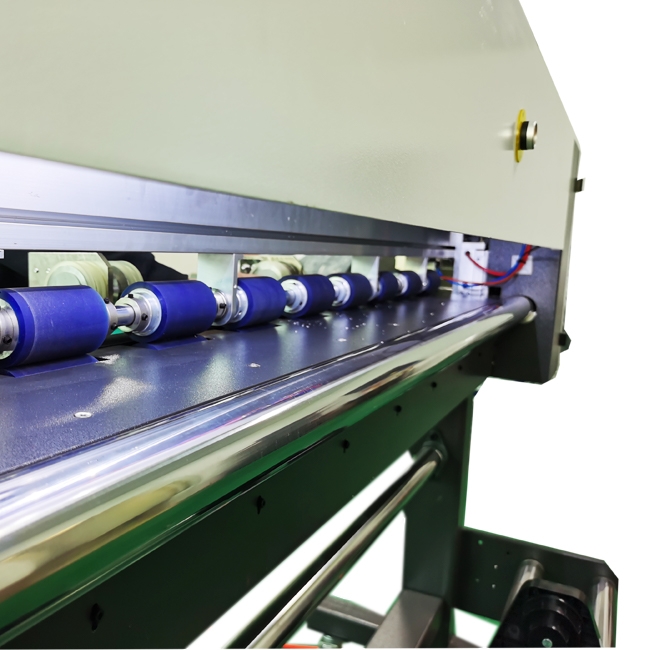

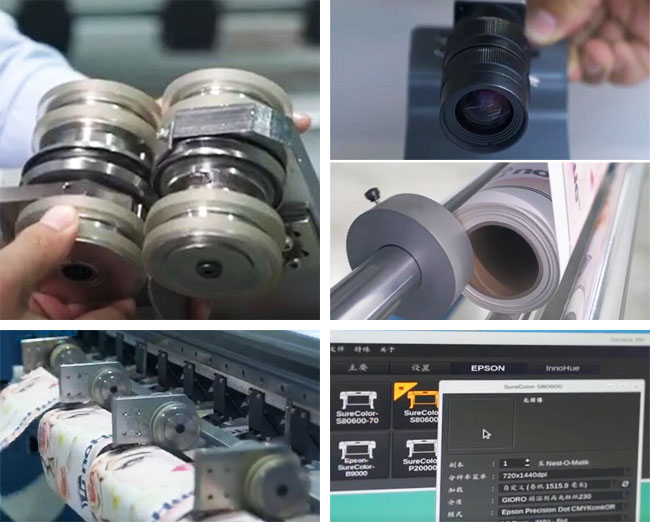

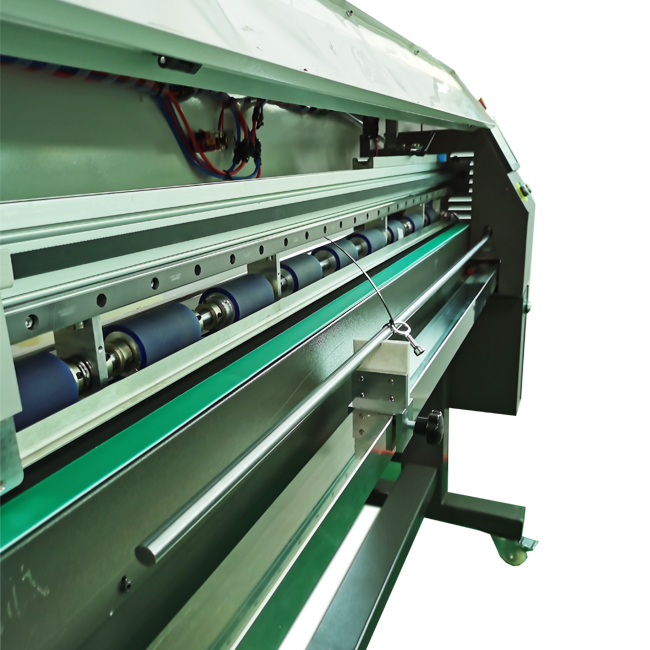

Detail:






SUPPOT - FULL SUPPORT AND SERVICE

Exhibition Gallery:
